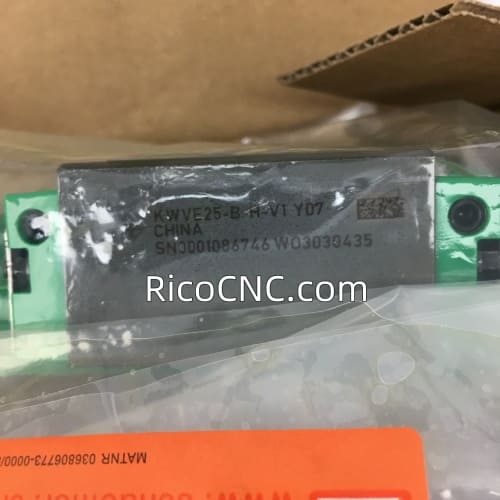

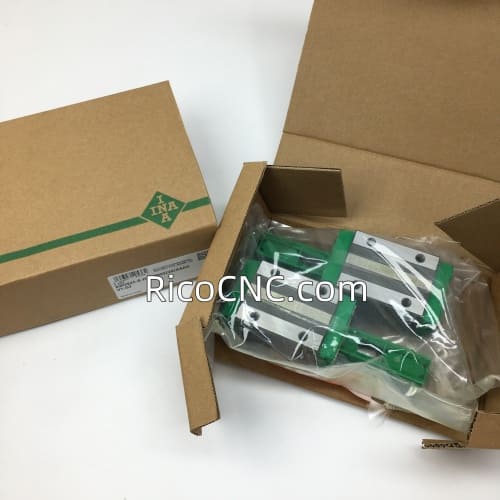

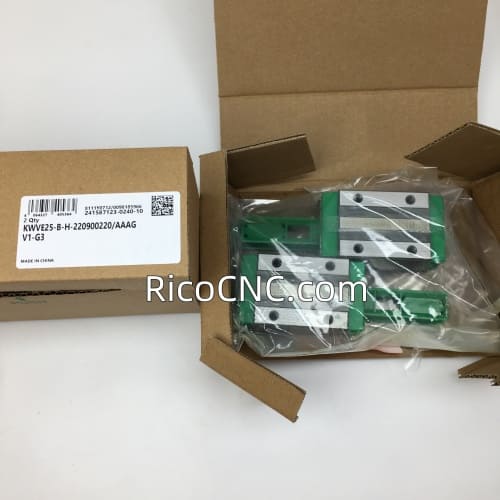

KWVE25-B-H-V1-G3 INA Linear Guide Carriage Linear Bearing Block

KWVE25-B-H-V1-G3 INA Linear Guide Carriage Linear Bearing Block, manufactured by INA, INA Linear Guide Carriage KWVE25, 17900N Dynamic Load, 39,000N Static load, 23mm Rail Width.

Specification of KWVE25-B-H-V1-G3 INA Linear Guide Carriage Linear Bearing Block:

Part No.: KWVE25-B-H-V1-G3

Linear Plain Bearing

Height system: 40 mm

Width carriage: 48 mm

Overall length carriage: 83.3 mm

Dynamic load rating 1: 17,900 N

Static load rating 1: 39,000 N

Static moment rating about X axis: 510 Nm

Static moment rating about Y axis: 395 Nm

Static moment rating about Z axis: 395 Nm
