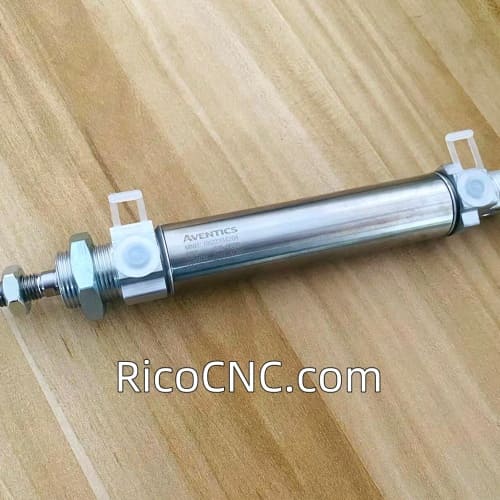

0822334204 Aventics Pneumatic Cylinder MNI-DA-25-0080-U-31-01-1-00-000-00

0822334204 Aventics Pneumatic Cylinder MNI-DA-25-0080-U-31-01-1-00-000-00, 25mm Bore, 80mm Stroke, MNI Series, Double Acting.

Specification of 0822334204 Aventics Pneumatic Cylinder MNI-DA-25-0080-U-31-01-1-00-000-00:

Standards: ISO 6432

Piston: Ø25 mm

Stroke80 mm

Functional principleDouble-acting

CushioningElastic cushioning

Magnetic pistonPiston with magnet

Environmental requirementsIndustry standard, ATEX optional

CertificatesATEX optional

Piston rodsingle

ScraperStandard industrial scraper

Pressure for determining piston forces6,3 bar

Retracting piston force260 N

Extracting piston force309 N

Min. ambient temperature-25 °C

Max. ambient temperature80 °C

Working pressure min.1 bar

Working pressure max10 bar

PortsG 1/8

Piston rod threadM10x1,25

Impact energy0.35 J
