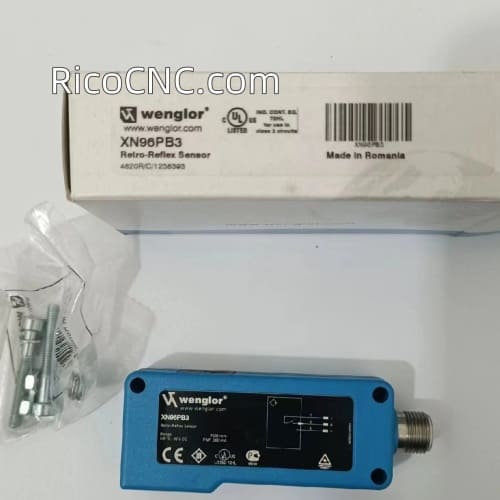

XN96PB3 WENGLOR Retro-Reflex Sensor Laser Retro-Reflex Sensor

Wenglor - XN96PB3 PHOTOELECTRIC SENSOR 9500MM Range, PHOTOELECTRIC Sensor, 10-30VDC, PNP, 4PIN, Sensor, 200MA, M12 X 1 Connector, Laser Retro-Reflex Sensor,  9500MM RANGE, PNP NO, M12 CONNECTOR, LASER.

Features of XN96PB3 WENGLOR Retro-Reflex Sensor Laser Retro-Reflex Sensor

Stainless steel plug (V2A)

Single-lens optic

Smallest recognizable part: 0,25 mm

Min. clearance to reflector: 0 mm

Specification of XN96PB3 WENGLOR Retro-Reflex Sensor Laser Retro-Reflex Sensor

Range: 9,500 mm

Reference Reflector/Reflector Foil: RQ100BA

Min. Distance to Reflector: 0 mm

Smallest Recognizable Part: > 250 µm

Switching Hysteresis: < 15 %

Light Source: Laser (red)

Wavelength: 650 nm

Polarization Filter: yes

Service Life (T = +25 °C): 100,000 h

Laser Class (EN 60825-1): 2

Max. Ambient Light: 10,000 Lux

Opening Angle: 0.6 °

Single-Lens Optic: yes

Supply Voltage: 10 ... 30 V DC

Current Consumption (Ub = 24 V): < 30 mA

Switching Frequency: 2,500 Hz

Response Time: 200 µs

Temperature Drift: < 10 %

Temperature Range: -25 ... 60 °C

Switching Output Voltage Drop: < 2.5 V

PNP Switching Output/Switching Current: 200 mA

Residual Current Switching Output: 50 µA
