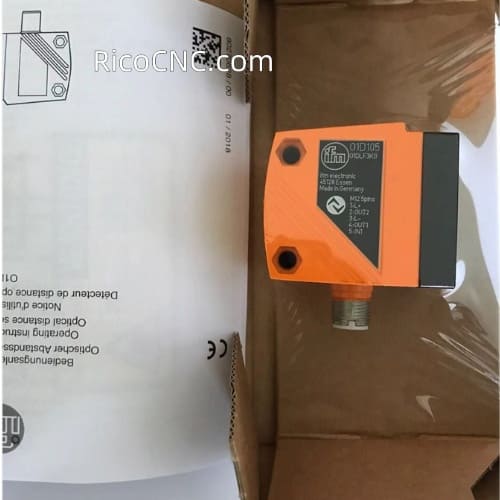

O1D105 IFM Photoelectric Distance Sensor Laser Ranging Sensor

O1D105 IFM Photoelectric Distance Sensor Laser Ranging Sensor, NO, NC, PNP, M12 CONNECTOR, 10-30V DC

Feature of PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display:

Reliable optical distance measurement up to 10 m

2 switching outputs; one of them can be programmed as an analog output

Adjustable measuring range and window function

Suitable for applications requiring background suppression

Extremely high cost-effectiveness

Specification of PN3004 PN-010-RBR14-MFPKG/US/ /V IFM Pressure sensor with display

Laser protection level: 2

shell: rectangular

Operating voltage [V]: 18...30 DC

Current consumption [mA]: < 150

Protection level: III

Reverse phase protection: yes

Service life [h]: 50000

Total inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1

Output quantity: 2

Electrical Design: PNP

Number of digital outputs: 2

Output function: Normally open/normally closed; (optional)

Maximum current load per output [mA]: 200

Number of analog outputs: 1

Analog current output [mA]: 4...20; (Adjustable range IEC 61131-2)

Maximum load [Ω]: 250

Analog voltage output [V]: 0...10; (adjustable range IEC 61131-2)

Minimum load resistance [Ω]: 5000

Short-circuit protection: yes

Short circuit protection type: pulse

Maximum light spot width [mm]: 15

Maximum light spot height [mm]: 15

Spot size reference: 10 m

Background blanking [m]: 10...100

Measuring range [m]: 0.2...10; (white paper 200 x 200 mm 90% reflective)

Measurement frequency [Hz]: 1...33
