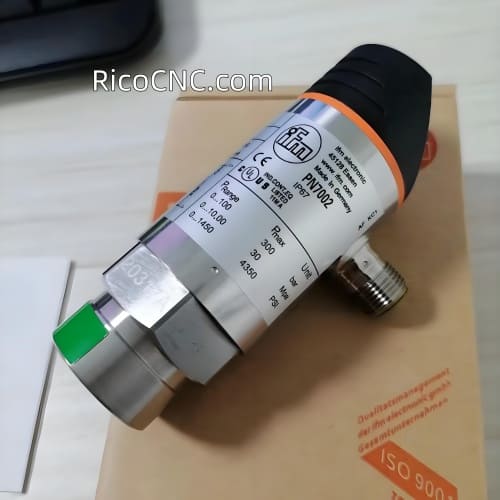

PN7002 IFM Pressure Sensor with Display

PN7002 IFM Pressure Sensor with Display, Pn-100-Sbr14-Qfrkg/Us//V Pn7002, liquids and gases media, relative pressure, 18...36 DC; (to SELV/PELV),

< 35 mA Current consumption, Number of digital outputs: 2.

Feature of PN7002 IFM Pressure Sensor with display

Two programmable switching outputs

With long-term stability thanks to high overload protection

Lifespan of more than 100 million pressure cycles

Clearly visible 4-digit LED display

Country-specific pressure units selectable

Specification of PN7002 IFM Pressure Sensor with display

Number of inputs and outputs: Number of digital outputs: 2

Measuring range: 0...100 bar 0...1450 psi 0...10 MPa

Process connection: threaded connection G 1/4 internal thread

Special feature: Gold-plated contacts

Application: for industrial applications

Media: liquids and gases

Conditionally suitable for: use in gases at pressures > 25 bar only on request

Medium temperature[°C]: -25...80

Min. bursting pressure: 650 bar 9400 psi 65 MPa

Pressure rating: 300 bar 4350 psi 30 MPa

Type of pressure: relative pressure

Operating voltage[V]: 18...36 DC; (to SELV/PELV)

Current consumption[mA]: < 35

Min. insulation resistance[MΩ]: 100; (500 V DC)

Protection class: III

Reverse polarity protection: yes

Overvoltage protection: yes; (< 40 V)

Power-on delay time[s]: 0.3

Integrated watchdog: yes
