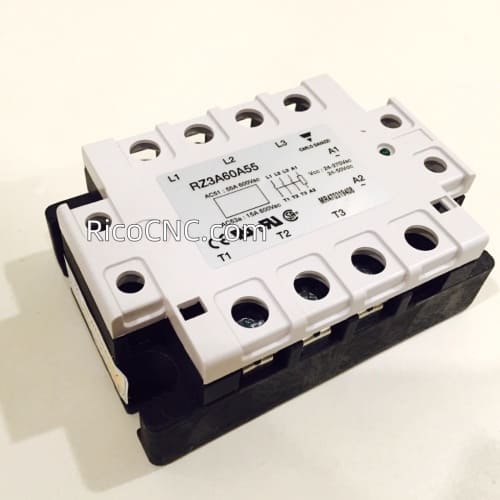

RZ3A60A55 Carlo Gavazzi Solid State Relay

Carlo Gavazzi, Inc. RZ3A60A55 Solid State Relay, 150 VAC, 3PST-NO, 55A/660V, Zero Switching, RZ3A Series, Operating voltage (Ue): 42 - 660 Vac (1600 Vp), Built-in overvoltage protection

Feature of RZ3A60A55 Carlo Gavazzi Solid State Relay:

• 3-phase Solid State Relay

• Zero switching

• Rated operational current: 3 x 25, 55 or 75 A

• Rated operational voltage: Up to 690 VAC

• Control voltage, 4-32 VDC or 24-275 VAC

• Integral snubber network

• Built-in varistor

• Over-temperature protection option with alarm output

• IP 10 back-of-hand protection

• LED indication of control input and over-temperature

alarm status

Specification of RZ3A60A55 Carlo Gavazzi Solid State Relay:

Model: RZ3A60A55

Output switching mode: Zero cross

Number of poles: 3

Rated current AC-51: 55 A

Rated current AC-53a: 15 A

Operating voltage: 42 V ... 660 V

Control voltage AC: 24 V ... 275 V

Control voltage DC: 24 V ... 50 V

Power connection: Screw with captive clamp
