• AVENTICS Short-stroke cylinder, Series KHZ 0822010555
• 0822010555
• Short-stroke cylinder, Series KHZ
• AVENTICS
• Series KHZ 0822010555
• AVENTICS Series KHZ Short-stroke cylinders

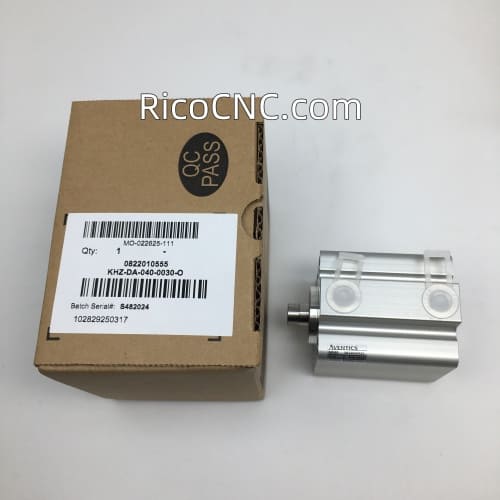

• KHZ-DA-040-0030-O
• AVENTICS Series KHZ

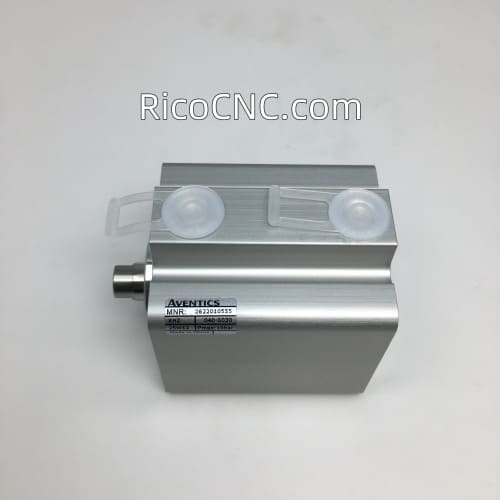

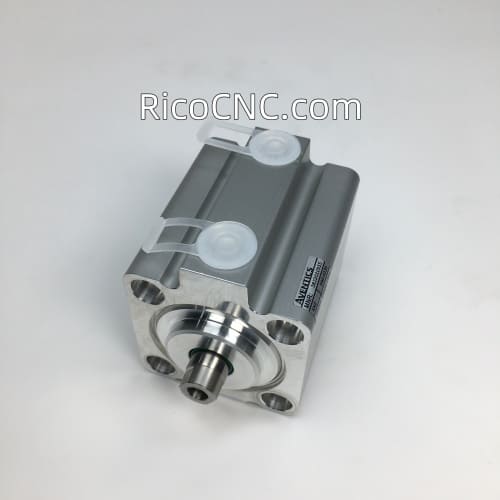

0822010555 AVENTICS Short-stroke cylinder, Series KHZ 0822010555, Retracting piston force: 720 N;
Extracting piston force: 792 N;Working pressure min. 0.6 bar;Working pressure max: 10 bar;
The AVENTICS Series KHZ is a non-standard short-stroke cylinder ideal for tight installation spaces and ensure easy, safe integration in machinery.
Specification of 0822010555 AVENTICS Short-stroke cylinder, Series KHZ 0822010555
Piston: Ø40 mm
Stroke: 30 mm
Functional principle: Double-acting
Cushioning: Elastic cushioning
Magnetic piston: Piston without magnet
Environmental requirements: Industry standard
Piston rod: single
Scraper: Standard industrial scraper
Pressure for determining piston forces: 6,3 bar
Retracting piston force: 720 N
Extracting piston force: 792 N
Working pressure min.: 0.6 bar
Working pressure max: 10 bar
PortsG: 1/8
Piston rod thread: M6
Impact energy: 0.24 J
