0822033207 AVENTICS Mini cylinder HOMAG 4035010066 Pneumatic Piston Rod Cylinders

0822033207 AVENTICS Mini cylinder HOMAG 4035010066 Pneumatic Piston Rod Cylinders


• AVENTICS Mini cylinder

• Series MNI 0822033207

• AVENTICS

• 4-035-01-0066

• HOMAG PART NO. 4035010066

• MNI-DA-20-0160-U-01-01-1-00-000-00

• Pneumatic Piston Rod Cylinders

• Roundline Cylinder

Series MNI 0822033207.jpg

EMERSON – AVENTICS Roundline Cylinder - 0822033207, 20mm Bore, 160mm Stroke, MNI Series, Double Acting, HOMAG PART NO. is 4035010066.


Specification of 0822033207 AVENTICS Mini cylinder HOMAG 4035010066 Pneumatic Piston Rod Cylinders:

Standards: ISO 6432

Piston: Ø20 mm

Stroke: 160 mm

Functional principle: Double-acting

Cushioning: Elastic cushioning

Magnetic piston: Piston without magnet

Environmental requirements: Industry standard, ATEX optional

Certificates: ATEX optional

Piston rod: single

Scraper: Standard industrial scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 166 N

Extracting piston force: 198 N

Working pressure min.: 1 bar

Working pressure max: 10 bar

Ports: G 1/8

Piston rod thread: M8

Impact energy: 0.23 J

Stroke max.: 1100 mm

Medium: Compressed air

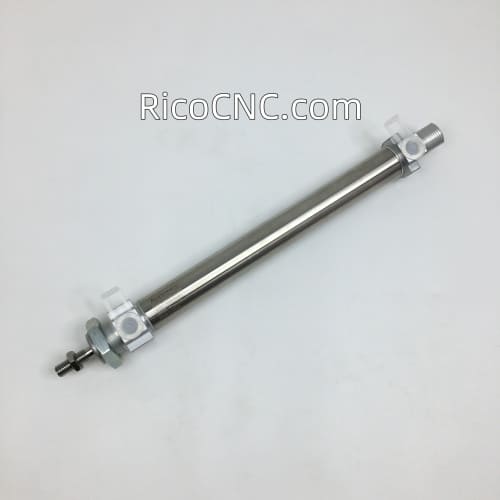

AVENTICS Mini cylinder.jpg

Also we supply:

0822010555 AVENTICS Short-stroke cylinder, Series KHZ 0822010555

ADVUL-25-10-P-A Festo Compact cylinder

R480047454 Aventics Cylinder KPZ-DA-020-0060-0081224110000000000022-B

Welcome your inquiry.

Pneumatic Piston Rod Cylinders.jpg
