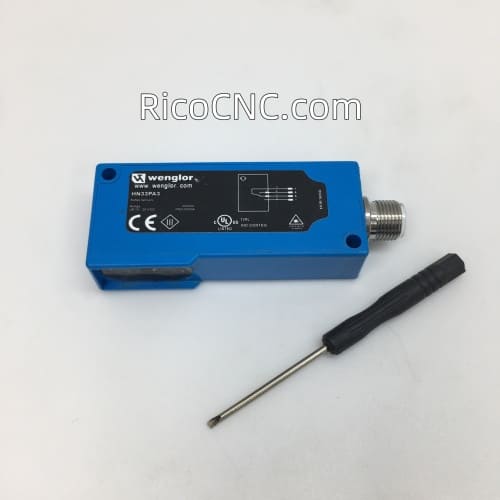

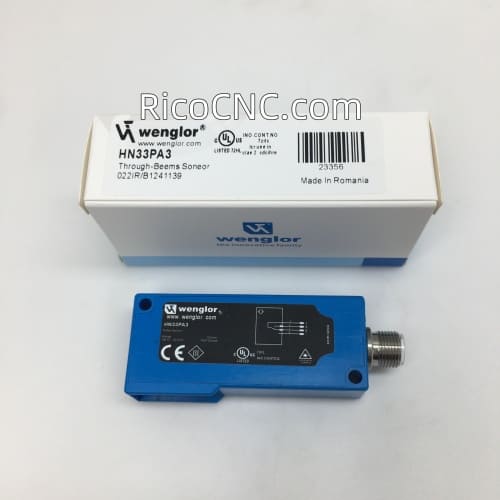

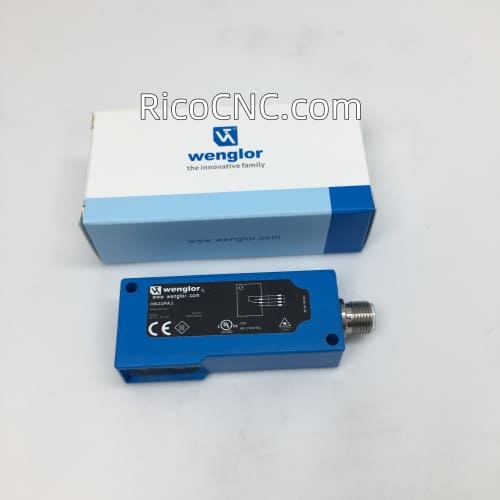

HN33PA3 wenglor Reflex Sensor with Background Suppression

HN33PA3 wenglor Reflex Sensor with Background Suppression, 300mm range, red right, 100000h service life, 10000LUX, 10-30VDC, 30mA, 1KHZ, 500us.

Features of HN33PA3 wenglor Reflex Sensor:

Stainless steel plug (V2A)

Red light

Precision background suppression

Specification of HN33PA3 wenglor Reflex Sensor with Background Suppression

Range: 300 mm

Setting Range: 60 ... 300 mm

Switching Hysteresis: < 5 %

Light Source: Red Light

Service Life (T = +25 °C): 100,000 h

Max. Ambient Light: 10,000 Lux

Supply Voltage：10 ... 30 V DC

Current Consumption (Ub = 24 V): 30 mA

Switching Frequency: 1 kHz

Response Time: 500 µs

Temperature Drift: < 5 %

Temperature Range: -25 ... 60 °C

Switching Output Voltage Drop: < 2.5 V

PNP Switching Output/Switching Current: 200 mA
