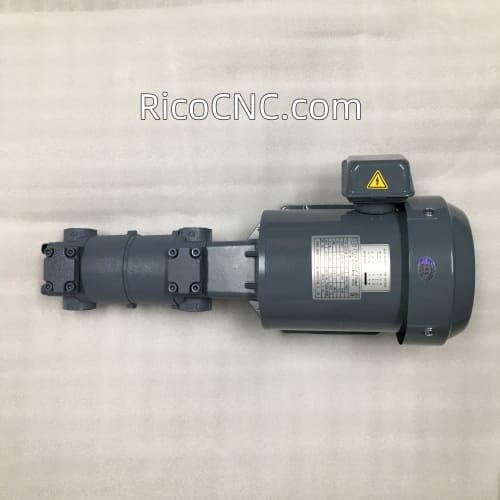

TOP-2MY750-220HBM+220HB Nippon trochoid oil pump, Small and intermediate capacity dual trochoid pumps attached to motor. 20.0+20.0 Theoretical displacement (cm³/rev, 0.4×0.4 (58.02× 58.02)Max. discharge pressure MPa (psi), 1800 Motor revolution (rpm), it can transfer of hydraulic, lubricating, and cooling oil.
Feature of TOP-2MY750-220HBM+220HB Nippon trochoid oil pump
Three phase motor is integrated
Motor output 200W/400W/750W/1500W
Small capacity(2.8~20㎤/rev)
Middle discharge pressure
Specification of TOP-2MY750-220HBM+220HB Nippon trochoid oil pump:
Brand Name: Nippon Oil Pump
Model Number: TOP-220HBM+220HB
Theoretical displacement (cm³/rev): 20.0+20.0
Theoretical discharge ℓ/min (US gal/min): 1500rpm, 30.0+30.0 (7.93+7.93)
Theoretical discharge ℓ/min (US gal/min): 1800rpm, 36.0+36.0 (9.51+9.51)
Max. discharge pressure MPa (psi): 0.4×0.4 (58.02× 58.02)
Motor revolution (rpm): 1800
Applications: Transfer of hydraulic, lubricating, and cooling oil
