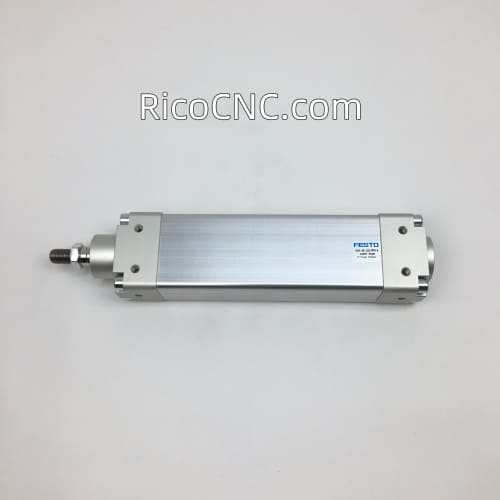

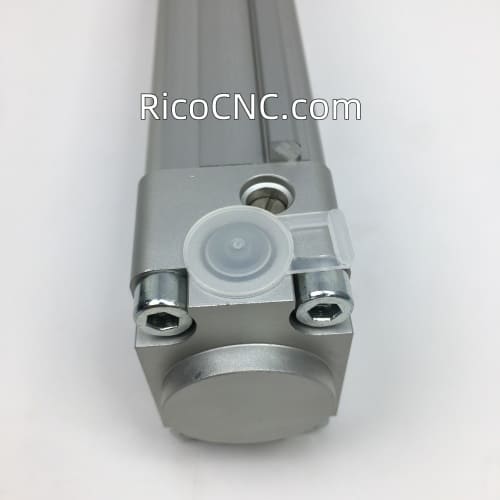

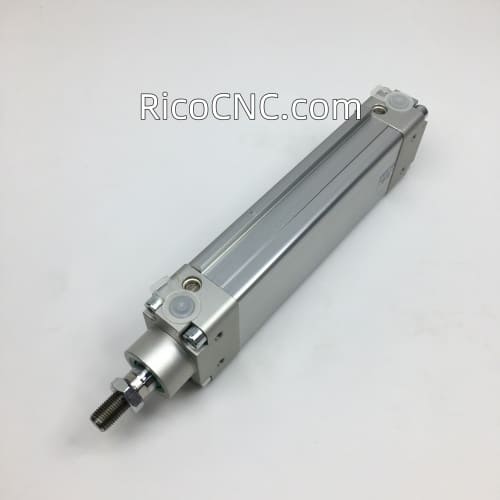

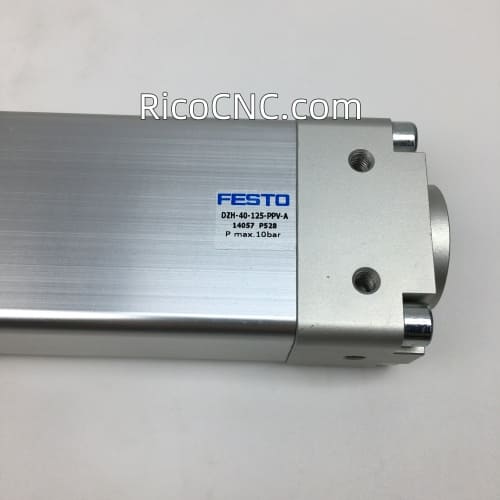

4035012152 FESTO 14057 Compact cylinders Homag 4-035-01-2152 cylinder

4035012152 FESTO 14057 Compact cylinders Homag 4-035-01-2152 cylinder. 0.06MPA-1MPA, 0.6bar-10bar, double-acting. 125mm stroke.

Specification of 4035012152 FESTO 14057 Compact cylinders Homag 4-035-01-2152 cylinder:

Stroke: 125 mm

Piston diameter: 40 mm Equivalent diameter

Piston rod thread: M12x1.25

Torsional backlash at piston rod +/-: 1.4 deg

Cushioning: Pneumatic cushioning, adjustable at both ends

Mounting position: optional

Mode of operation: Double-acting

Design: Piston, Piston rod

Position detection: Via proximity switch

Symbol: 00991235

Variants: Piston rod at one end

Protection against torque/guide

Oval piston

Operating pressure: 0.06 MPa ... 1 MPa

Operating pressure: 0.6 bar ... 10 bar

Also we supply:

R480042074 AVENTICS Profile cylinder PRA-DA-050-0125-0322311100000000000000-B

AC40-04DE-BH SMC Air Combination Air Filter + Regulator + Lubricator

0822353019 AVENTICS Pneumatic Cylinder SERIES PRA PRA-DA-063-0150-0-2-2-1-1-1-BAS

Welcome your inquiry.
