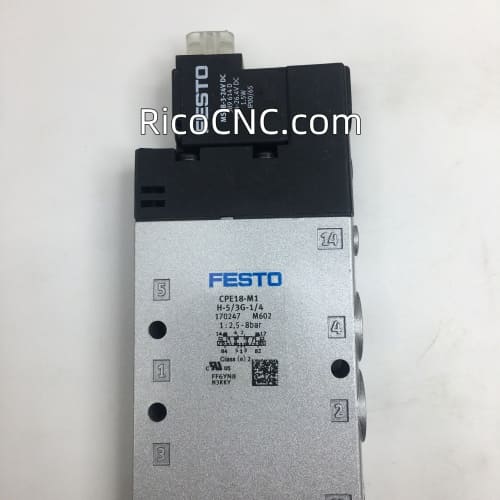

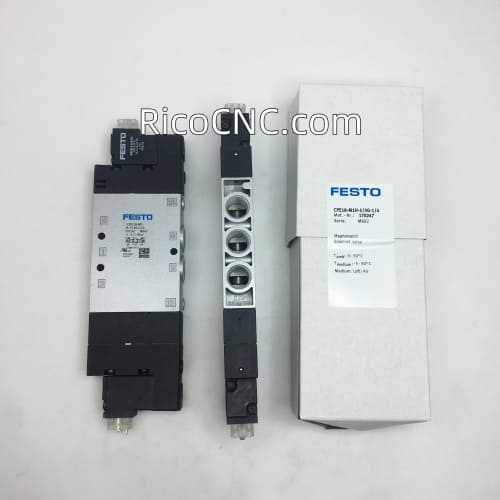

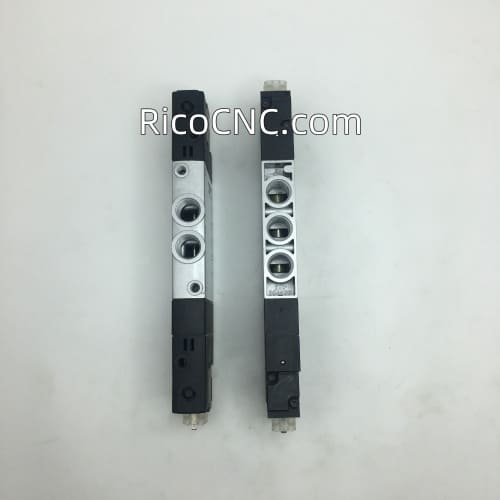

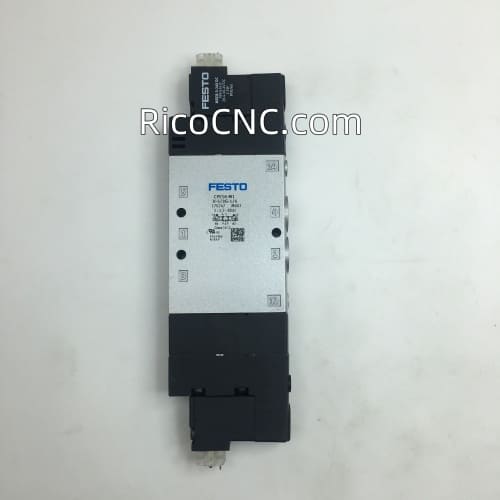

CPE18-M1H-5/3G-1/4 FESTO 170247 Solenoid valve

Festo CPE18-M1H-5/3G-1/4 (170247) Solenoid Valve, 5/3 closed, 1.450 Normal nominal flow, 2.5 to 10 Operating pressure, Mechanical spring.

Specification of CPE18-M1H-5/3G-1/4 FESTO 170247 Solenoid valve:

Valve function: 5/3 closed

Standard nominal flow rate (standardised to DIN 1343): 1450 l/min

Pneumatic connection, port 1: G1/4

Type of actuation: Electric

Construction width: 18 mm

Standard nominal flow rate (standardised to DIN 1343): 1450 l/min

pneumatic working port: G1/4

Operating voltage: 24V DC

Operating pressure: 0.25 MPa ... 1 MPa

Operating pressure: 2.5 bar ... 10 bar

Type of reset: Mechanical spring

Approval: c UL us - Recognized (OL)

Certificate issuing authority: UL MH19482

Nominal size: 8 mm

Exhaust-air function: With flow control option

Sealing principle: Soft
