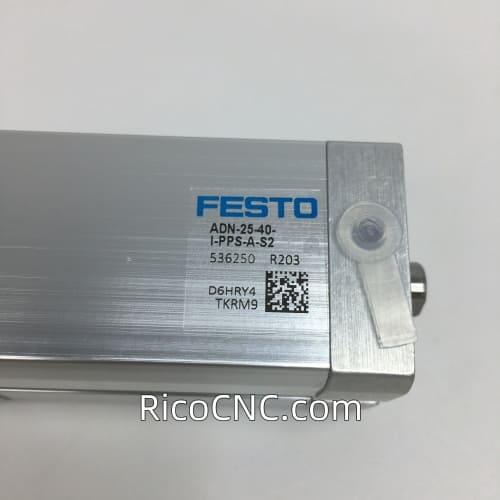

ADN-25-40-I-PPS-A-S2 FESTO FESTO Compact cylinder 536250

ADN-25-40-I-PPS-A-S2 FESTO FESTO Compact Cylinder 536250, Series (ADN), Compact cylinder, double-acting, based on ISO 21287 ; Piston diameter [mm] (25), 25 ; Stroke [mm] (50), 50 ; Piston rod thread type (A), Male thread.

Specification of ADN-25-40-I-PPS-A-S2 FESTO FESTO Compact cylinder 536250:

Stroke: 1 mm ... 300 mm

Piston diameter: 25 mm

Cushioning: Elastic cushioning rings/pads at both ends

            Self-adjusting pneumatic end-position cushioning

Mounting position: Any

Conforms to standard: ISO 21287

Structural design: Piston/ Piston rod/ Profile barrel

Position sensing: Via proximity switch

Variants: Additional PTFE piston guide

Operating pressure: 0.06 MPa ... 1 MPa

Operating pressure: 0.6 bar ... 10 bar

Mode of operation: Double-acting

Pneumatic connection: M5
