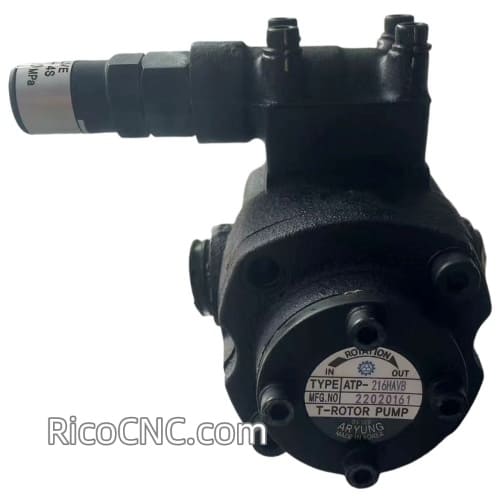

ATP-216HAVB Aryung T-ROTOR pump Hydraulic Gear Pump

The ATP-216HAVB ATP-HAVB pumps are designed with double oil seals for long term use in high temperatures below 180°C. The oil seals are made from FKM Material. This pump can be ordered with a relief valve to control pressure to avoid overloading the motor and pump operation. This pump is used for transferring oil and fuel, lubrication of machine and tools, and hydraulic applications.

Part : T-ROTOR Oil Pump

Model Number : ATP-216HAVB

Manufacturer : A-Ryung Machinery Industries

cm³/rev: 19.8

Discharge Volume: 1,500 rpm/ 24.3; 1,800 rpm/ 29.1

Max Pressure: 3 Mpa

Permissive Rotation: 300 - 1,800 rpm

Application: Fluid : Oils; Kinematic viscosity (40℃ standard) : 20 ~ 220 cSt

Material:

Pump body : Cast iron

Port housing : Cast iron

Pump cover : Cast iron

Bearing : #6202zz, 6301zz

Shaft : Steel

Rotor : Powder steel
