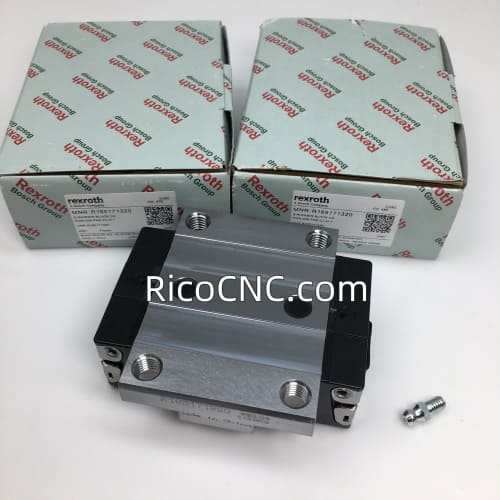

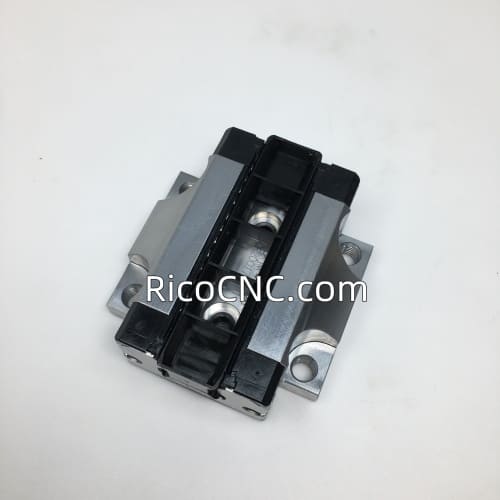

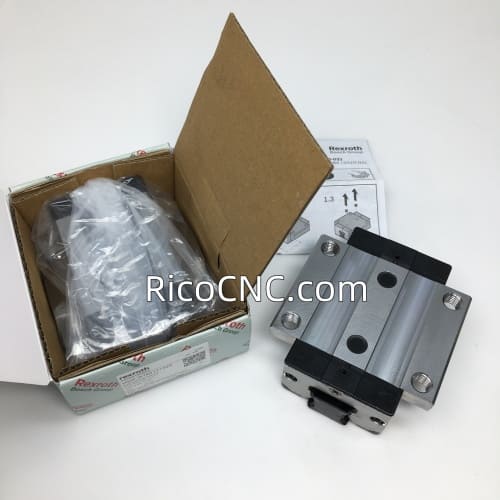

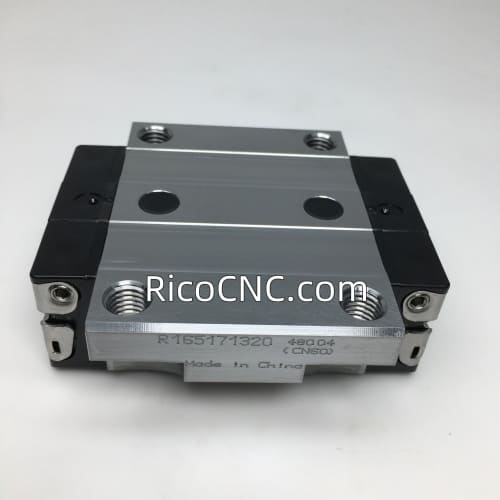

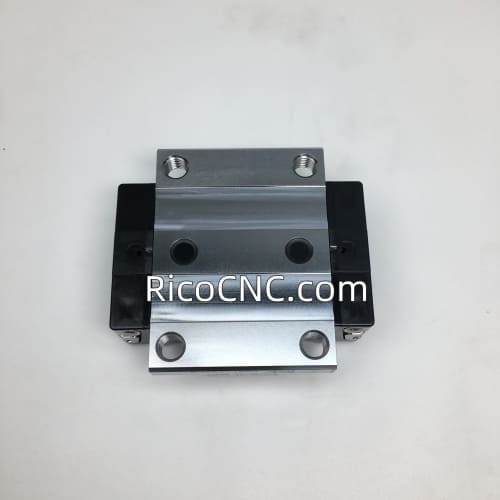

R165171320 Bosch Rexroth Ball Runner Block Carbon Steel KWD-030-FNS-C1-H-1

BALL RUNNER BLOCK CARBON STEEL KWD-030-FNS-C1-H-1 R165171320, Ball runner block, FNS, size 30, steel CS, accuracy high, low preload, without

ball chain, Dynamic load capacity C 36500 N, Static longitudinal moment load capacity ML0 is 580 Nm, Static torsional moment load capacity Mt0 is 830Nm.

Specification of R165171320 Bosch Rexroth Ball Runner Block Carbon Steel KWD-030-FNS-C1-H-1:

Size 30

Width of runner block [mm]: 90.0

Length of runner block [mm]: 97.7

Height of runner block [mm]: 35.35

Height runner block with guide rail [mm]: 42.0

Lubrication: Pre-lubricated, preserved

Maximum acceleration rate amax [m/s²]: 500.0

Note: Max. acceleration amax If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s] 5.0

Runner block body made of unalloyed steel CS

Preload class C1: Low preload

Accuracy class H: High

Without ball chain

With initial lubrication and preservation

Roller bearing grease Dynalub 510

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

Straight lube connection loosely attached.

Runner block body in standard version

Overall length of the runner block = 97.7 mm
