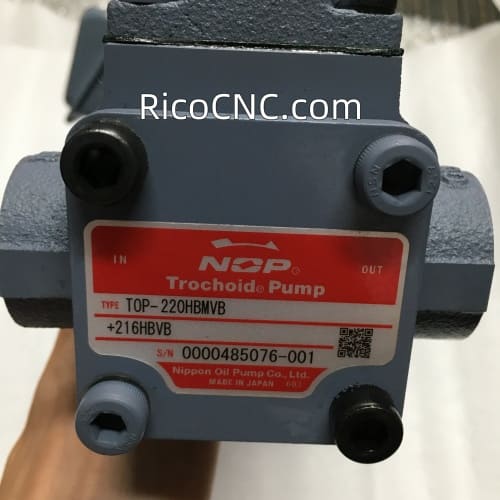

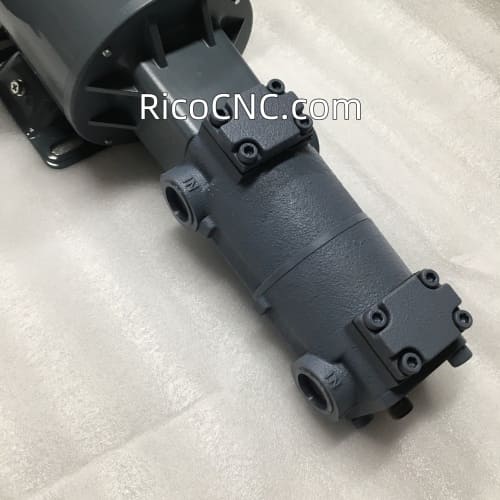

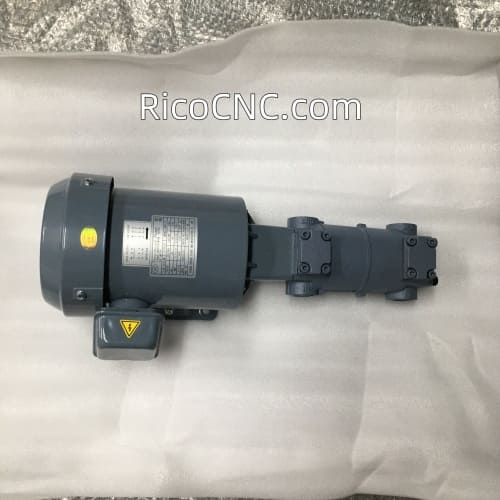

TOP-2MY750-220HBM+216HB Nippon trochoid oil pump, Small and intermediate capacity dual trochoid pumps attached to motor. 16+16 Theoretical displacement (cm³/rev, 0.5*0.5 Max. discharge pressure MPa (psi), 1800 Motor revolution (rpm), it can transfer of hydraulic, lubricating, and cooling oil.
Feature of TOP-2MY750-220HBM+216HB Nippon Trochoid Oil Pump

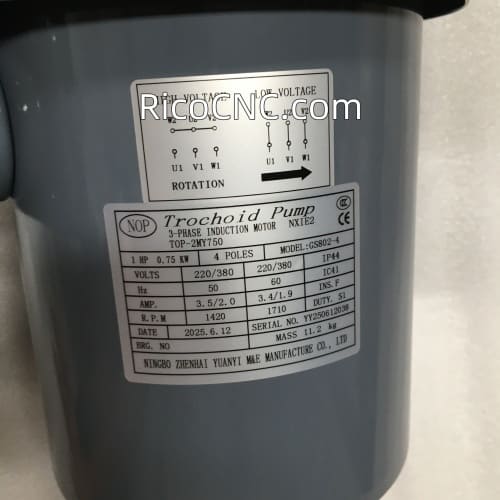

Three phase motor is integrated
Motor output 200W/400W/750W/1500W
Small capacity(2.8~20㎤/rev)
Middle discharge pressure
Specification of TOP-2MY750-220HBM+216HB Nippon Trochoid Oil Pump:
Brand Name: Nippon Oil Pump
Model Number: TOP-220HBM+220HB
Theoretical displacement (cm³/rev): 16.0+16.0
Theoretical discharge ℓ/min (US gal/min): 1500rpm, 24+24
Theoretical discharge ℓ/min (US gal/min): 1800rpm, 28.8+28.8
Max. discharge pressure MPa (psi): 0.5*0.5
Motor revolution (rpm): 1800
Applications: Transfer of hydraulic, lubricating, and cooling oil
